Expert Mercedes Instrument Cluster Repair in Dubai
Dashboard not lighting up? Speed needle stuck or screen completely blank? These issues are common in Mercedes cars—especially in Dubai’s heat. We fix over 120 Mercedes instrument clusters every month at our garage. Most repairs are done within 24 hours. We use original parts, not copies. Our Mercedes instrument cluster repair in Dubai includes full testing, programming, and calibration. You keep your car’s mileage and settings. No need to replace the whole unit. Right now, we’re offering 15% off on all cluster repairs and free pickup within Dubai. Book today and avoid bigger problems tomorrow.

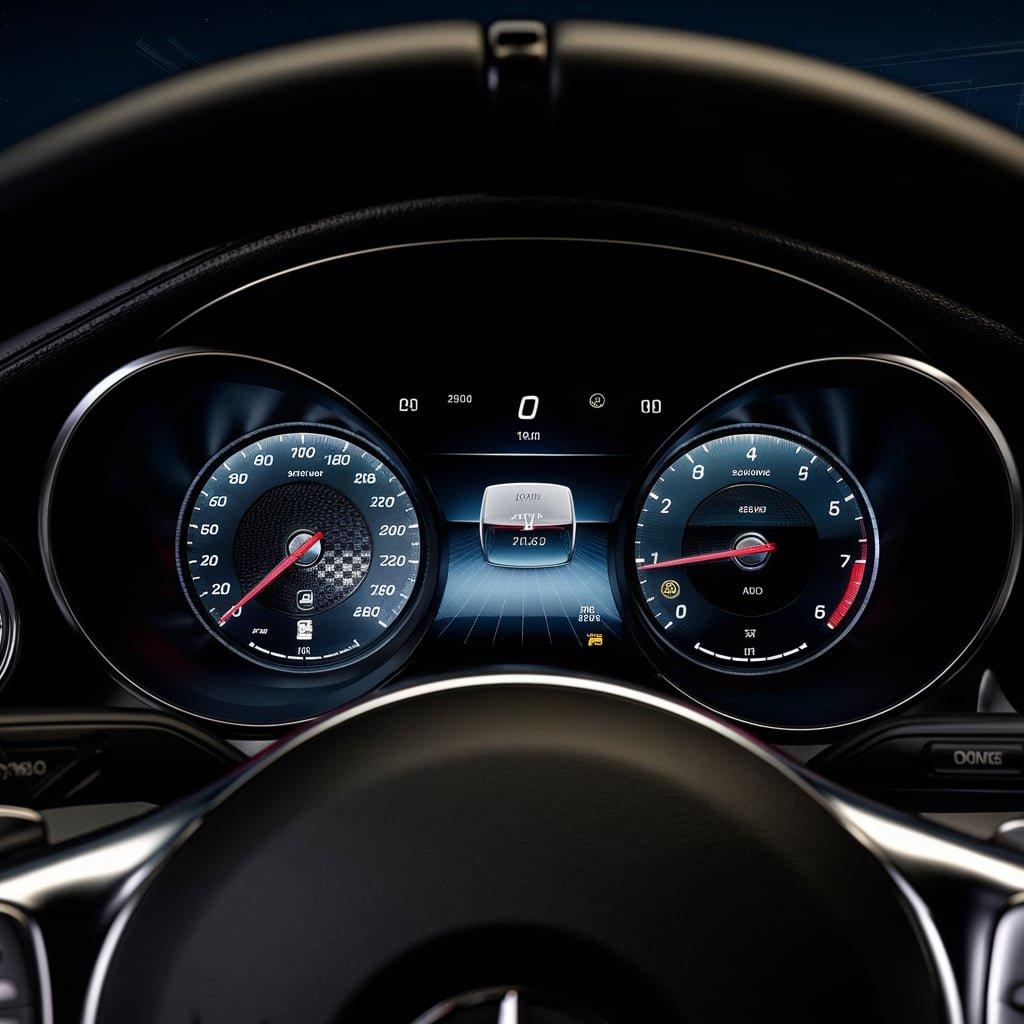

What Is a Mercedes Instrument Cluster?
The Mercedes instrument cluster is the main display unit behind your steering wheel. It shows you all the essential driving data—speed, fuel level, engine temperature, RPM, and warning lights like check engine, ABS, and brake wear. Depending on the model, it may also include a multifunction display for gear position, trip info, and navigation prompts. In cars like the W204 C-Class or W221 S-Class, the cluster is a mix of analog gauges and digital screens. In newer models like the W205 or W223, it’s a fully digital panel with real-time graphics and multiple display modes.
Behind the scenes, the cluster receives signals from systems like the ECU, TCM, ABS and body control module. It also stores important vehicle information such as VIN, odometer reading, and service logs. A faulty cluster can lead to blank screens, flickering displays, or incorrect speed and fuel readings. These are common in Dubai, especially in older models exposed to heat and voltage fluctuations. On average, we see over 120 instrument cluster repairs per month, with most issues traced to LCD screen failure, EEPROM corruption, or gauge motor faults.
Components Inside a Mercedes Instrument Cluster
The Mercedes instrument cluster contains several key electronic parts that control everything you see on your dashboard. Each part plays a different role, and a failure in even one can lead to display issues, warning light errors, or total blackout. Below is a list of actual components commonly found inside various Mercedes clusters like the W203, W204, W210, W221, and W205, along with their functions and failure causes:
- LCD Display Panel (e.g., Sharp LQ043, LTA070B511F) – Shows mileage, gear position, and warning icons; often fails with pixel loss or dark spots in hot climates like Dubai.
- LCD Ribbon Cable (26-pin FFC cable) – Connects the LCD screen to the circuit board; prone to detachment or internal breakage due to heat and repeated expansion.
- Gauge Stepper Motors (X27.168, VID29-02, Switec Juken) – Move the needles for speedometer, tachometer, fuel, and temp gauges; commonly fail with jittering or stuck needle issues.
- Microcontroller Unit (Motorola/Freescale MC9S12DG256, Renesas RH850) – Acts as the control brain of the cluster, processing input signals from ECU and other modules; failure causes random or complete display malfunctions.
- EEPROM Chip (93C66, 24C16, 95080) – Stores key data such as mileage, VIN, and service logs; if corrupted, it leads to odometer issues or startup errors.
- CAN Bus Transceiver (TJA1050, MCP2551) – Manages communication between the cluster and systems like the ECU, EZS, ABS; if damaged, the cluster may not power up or sync with other modules.
- Voltage Regulator (LM7805, AMS1117-5.0) – Converts 12V battery input to safe levels like 5V or 3.3V for internal components; failure causes flickering or dead displays.
- Surface-Mounted Capacitors (100uF 16V, ceramic/tantalum) – Stabilize voltage flow and reduce electrical noise; dried or blown capacitors are a frequent cause of display instability.
- Printed Circuit Board (PCB) – Hosts and connects all the electronic components; cracks, burnt tracks, or broken solder joints can cause partial or complete failure of the cluster.
- Backlight Illumination (SMD LEDs or T5 Wedge Bulbs) – Lights up gauges and LCD at night; often fades or burns out, especially in older models like the W220 and W221.
Each of these parts can be tested, repaired, or replaced individually, which is far more cost-effective than replacing the full cluster. At our Dubai-based Mercedes workshop, we use original replacements and precision diagnostic tools to ensure that only the faulty component is addressed—restoring full function without losing your cluster’s data or coding.

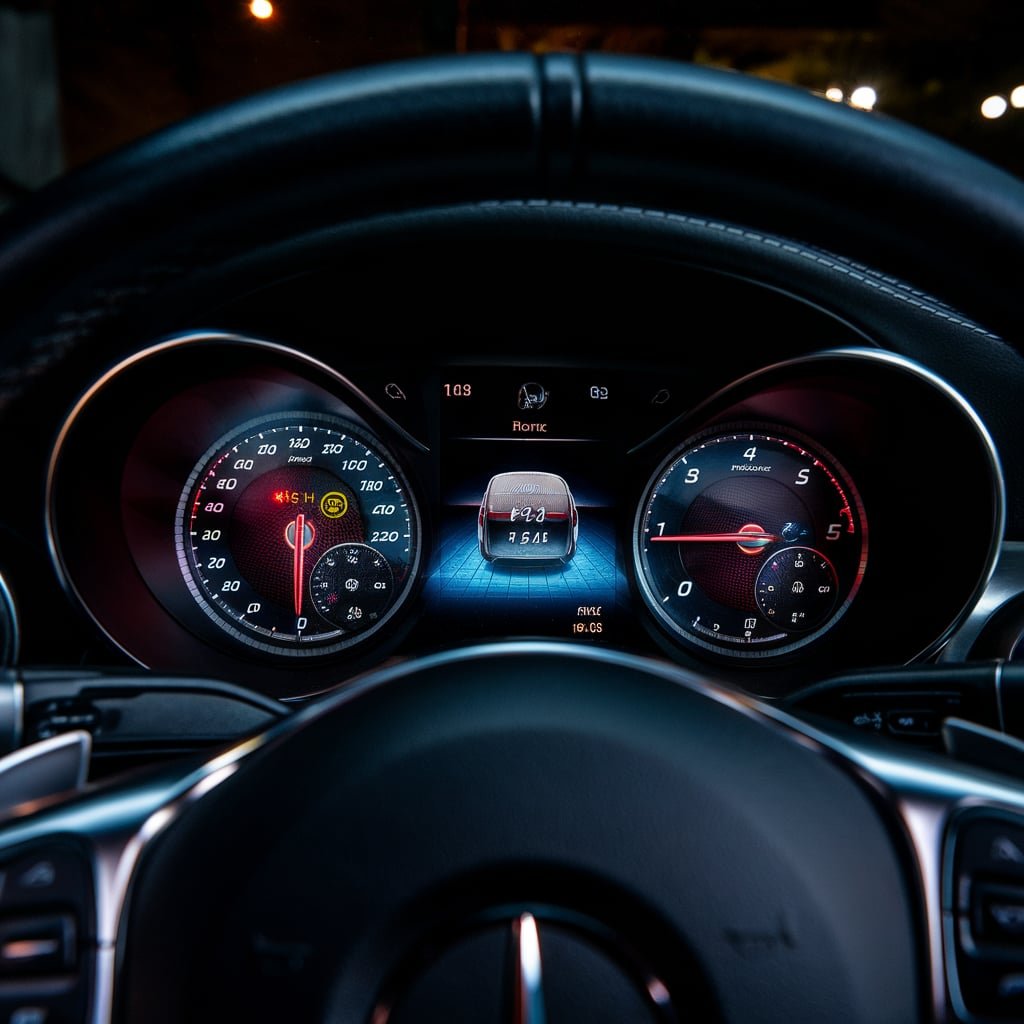

Symptoms of a Failing Instrument Cluster in Mercedes
When your Mercedes instrument cluster starts to fail, it often shows very specific signs. Ignoring them can lead to safety issues, wrong readings, or even car starting problems. Based on repair data from over 120+ cluster jobs per month at our Dubai garage, here are the most important and common symptoms to watch for:
- Needles Stuck or Not Moving (W204, W211)
The speedometer or RPM needle does not move at all or stays stuck even when the engine is on. This usually happens because the gauge motor inside the cluster has failed. - Blank or Flickering Display (W203, W210, W221)
The screen behind the steering wheel goes black, flickers, or shows broken lines. This is often caused by a faulty LCD panel or a damaged ribbon cable due to heat. - Wrong Mileage or Dashes Showing (W204, W203)
If your cluster shows “—” instead of the mileage, or displays the wrong number, the EEPROM chip storing that data may be corrupted—usually after a dead battery or jumpstart. - Gear Position (PRNDL) Not Showing (W221, W164)
You cannot see if the car is in park, reverse, or drive. This is a serious issue, mostly linked to CAN Bus failure or cluster communication errors with the transmission. - Warning Lights Turn On Without Reason (W210, W203)
Lights like ABS, battery, or SRS (airbag) stay on even though the systems are fine. This is often caused by a faulty voltage regulator or bad coding in the cluster. - Cluster Resets While Driving (W221, W205)
The whole dashboard shuts off and restarts by itself. This usually happens due to power loss from a weak voltage IC or unstable current flow inside the unit.
Each of these issues is a clear sign that your Mercedes instrument cluster repair is needed. Ignoring them can lead to bigger failures—and in some cases, stop the car from starting or shifting properly.
When to Repair vs Replace a Mercedes Instrument Cluster
Choosing between repairing and replacing your Mercedes instrument cluster depends on the type of fault, the model of the vehicle, and whether core components are still intact. Here’s a clear guide to help you decide based on real cases we handle every week.
When to Repair the Instrument Cluster
Repair is the better and more cost-effective choice when:
- Display Has Dead Pixels or Dim Areas
Common in W203, W210, and W220. This is often due to ribbon cable or LCD panel failure, both of which can be replaced within 24 hours. - Gauges Are Stuck or Jumping
If the speedometer or RPM needle is acting strange, we replace the gauge stepper motors (e.g., X27.168 or VID29-02) without touching the rest of the unit. - Mileage Display Shows Dashes or Incorrect Values
Usually a EEPROM data issue. In most cases, we recover and reprogram the EEPROM to restore original mileage and VIN. - Warning Lights Are Randomly On Without Fault
Linked to minor voltage regulator failure or soldering cracks on the PCB—repairable without cluster replacement. - Cluster Goes Blank or Flickers Occasionally
Often caused by power issues, blown capacitors, or failing regulators. All are replaceable using high-quality components.
Repair retains your original VIN, mileage, service history, and cluster coding — no RTA compliance issues or reprogramming delays.
When to Replace the Instrument Cluster
Replacement is necessary when the core electronics are permanently damaged:
- Complete Cluster Dead After Power Surge or Short Circuit
If the MCU (microcontroller) or main PCB is burned or non-responsive, repair is often not possible. - Severe Water or Corrosion Damage
Seen in flooded vehicles or models with sunroof leakage (common in W164 ML-Class). Moisture corrodes the internal tracks and components beyond repair. - EEPROM Corrupted and Unreadable
If a failed DIY repair or power spike wipes out EEPROM content, cluster replacement may be the only option. - Physically Cracked or Damaged Cluster Housing
If the cluster casing or screen is broken (due to impact or removal damage), it’s safer to replace the whole unit. - You’ve Already Had Two or More Failed Repairs
If a previous garage has poorly soldered or replaced components, we may recommend starting fresh with a coded replacement unit.
Replacement requires SCN coding, VIN syncing, and sometimes immobilizer adaptation — a longer, more expensive process.
Why Mercedes Cluster Repairs Are Different from Regular Cars
Repairing a Mercedes instrument cluster is not a basic dashboard fix. Unlike regular cars, Mercedes clusters are deeply integrated with the car’s security, communication, and control systems. That means standard tools and quick-fix methods do not work—and using the wrong approach can damage other modules or disable the car completely. We handle these repairs using tools and procedures designed specifically for Mercedes-Benz vehicles. Here’s what sets our process apart from a typical repair shop:
- Every Mercedes Cluster Is VIN-Locked
The cluster is coded to match your vehicle’s VIN. If this coding is not preserved during repair, it may trigger mismatch errors or block communication with the ECU and EZS (Electronic Ignition Switch). We maintain all original VIN data during repair using XENTRY and Vediamo. - The Cluster Communicates with Key Systems
Your speedometer, warning lights, and even gear display rely on real-time data from modules like the engine, gearbox, ABS, and steering system. If the repaired cluster is not synced properly, it can interrupt signals to these systems. Our technicians are trained to test and recalibrate each repaired unit to restore full functionality. - Sensitive Data Is Stored in the EEPROM Chip
Inside the cluster is an EEPROM chip that holds your mileage, service history, and coding configuration. During repair, we back up this data before reprogramming to avoid data loss. This step is often skipped by general garages—leading to odometer errors or system faults. - Specialized Tools Are Required
Mercedes clusters cannot be tested or reprogrammed using regular OBD tools. We use Mercedes XENTRY, DAS, Vediamo, and Monaco software—these tools allow us to run diagnostics, access protected modules, and apply the correct firmware updates after repair. - Component-Level Repairs, Not Replacements
Many garages replace the entire cluster even for minor issues. We focus on repairing the specific fault—whether it’s a faulty LCD screen, burnt voltage regulator, corrupted EEPROM, or failing stepper motor. This saves you time and reduces cost by up to 75% compared to full replacement.
Types of Mercedes Instrument Clusters
Mercedes vehicles use different types of instrument clusters based on model, year, and onboard features. At our Mercedes instrument cluster repair center in Dubai, we handle all types using the correct tools, coding software, and data backup methods. Here’s how cluster types vary across models:
- Analog-Digital Hybrid Clusters
Found in models like the W203 C-Class, W210 E-Class, and W211 E-Class produced between 1996 and 2006, these clusters combine analog gauges with a small central LCD display. Common issues include pixel failure, ribbon cable breakdown, and dimmed screens due to heat. We repair these by replacing faulty LCDs, fixing EEPROM faults, and preserving the original mileage. - Advanced Semi-Digital Clusters
Used in models such as the W204 C-Class, W221 S-Class, and W164 ML-Class, generally between 2007 and 2013, these clusters display more data like navigation and trip info while retaining analog needles. They often suffer from stepper motor issues, EEPROM corruption, or gear position display errors (PRNDL) caused by CAN signal faults or voltage irregularities. - Fully Digital Instrument Clusters

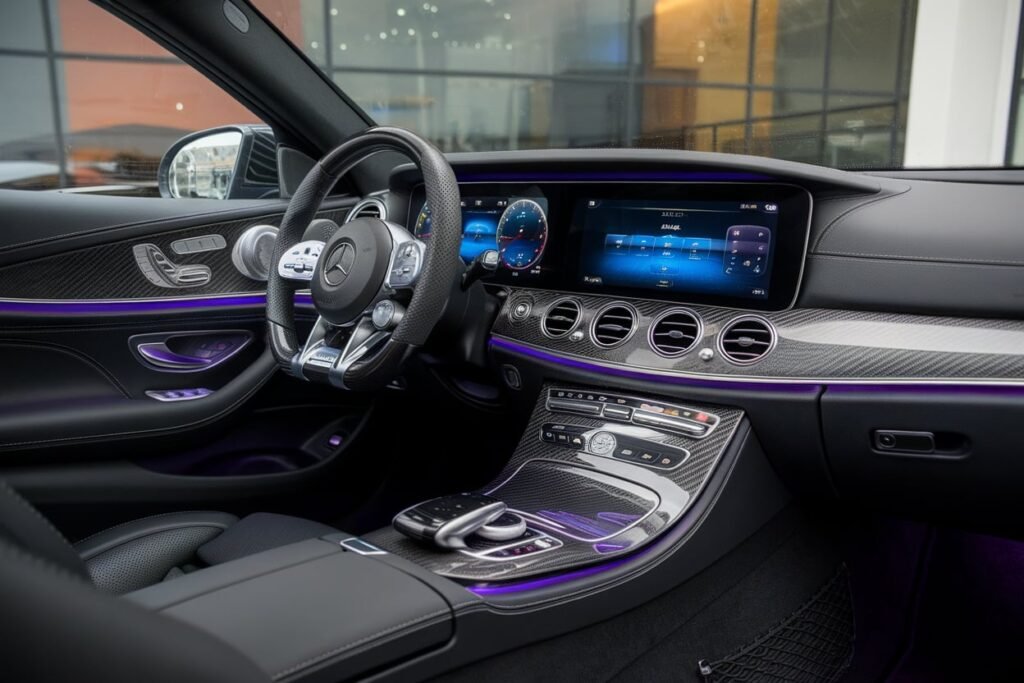

Seen in newer models including the W205 C-Class, W213 E-Class, and W222 S-Class, built from 2014 to 2020, these clusters rely entirely on high-resolution digital screens. Repairs typically involve firmware updates, software errors, or complete screen freezes. We use tools like Monaco, Vediamo, and XENTRY to safely update and reprogram these units while protecting VIN and coding data. - AMG-Specific Digital Clusters
Installed in Mercedes-AMG models such as the C63, E63, G63, and GT Series, these clusters include advanced visuals like boost pressure, lap timers, and drive mode animations. They use the same hardware base but different coding and firmware, which must be preserved during repair. Our team handles AMG-specific clusters with care to avoid losing factory performance features.

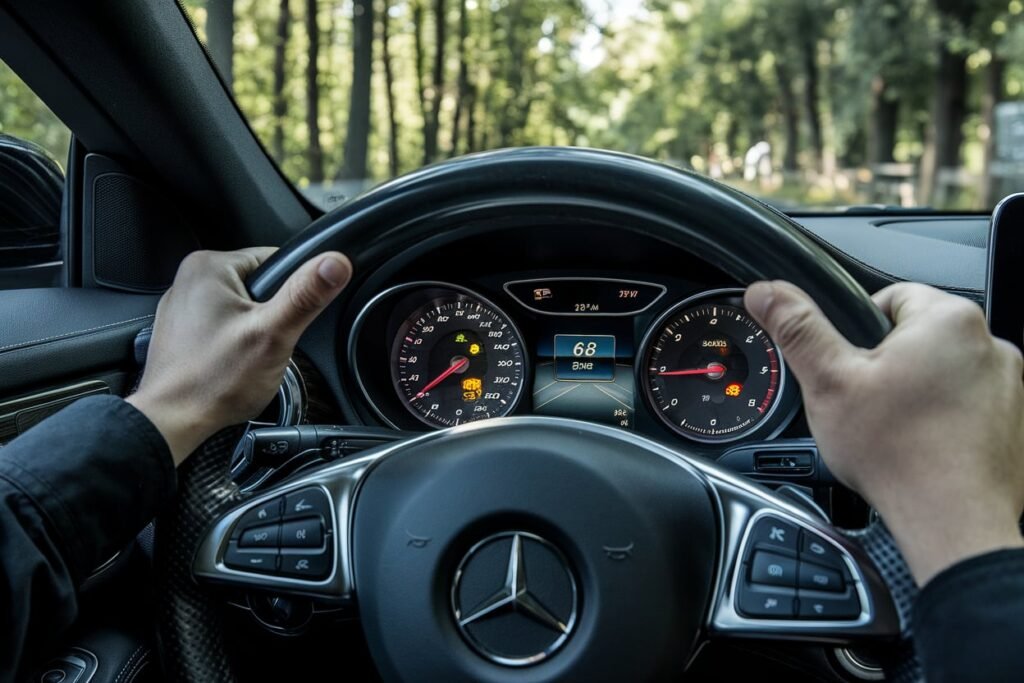

Risks of Driving with a Faulty Mercedes Instrument Cluster
Driving your Mercedes with a faulty instrument cluster might seem manageable at first—especially if the car still starts and moves. But the risks build up fast. Your cluster is not just a display screen; it is a critical communication point for key systems like engine, transmission, brakes, and more. At our Mercedes garage in Dubai, we often see vehicles come in with compounded issues just because the cluster problem was ignored too long. Here are the real-world risks of continuing to drive with a bad cluster:
- No Speed or RPM Visibility
If your speedometer or tachometer is stuck or blank, you will not know how fast you are going. This increases the risk of overspeeding and traffic fines—especially in radar-controlled zones across Dubai. - Missed Warning Signs
A faulty cluster may not show active warnings like low oil pressure, engine overheating, or brake failure. Ignoring these can lead to engine damage, ABS failure, or sudden breakdowns on highways. - Gear Position Not Displayed (PRNDL)
In automatic models, if the gear indicator disappears, you might accidentally shift into the wrong gear, especially in parking lots or traffic. This is common in W221 S-Class and W164 ML-Class with cluster communication faults. - Cluster Resets While Driving
If your dashboard turns off and restarts mid-drive, even for a few seconds, you lose access to fuel levels, speed, and warnings. This can distract the driver and create confusion—especially at night or in heavy traffic. - Fails RTA Vehicle Testing
A faulty instrument cluster will cause your vehicle to fail the RTA inspection in Dubai. The cluster must show mileage, working warning lights, and accurate gauge readings to pass the test. - Legal & Safety Risks
In the event of an accident, a non-working cluster can become a liability issue. It may raise questions about speed, maintenance neglect, or ignored warnings—especially if insurance investigation is involved.
If your Mercedes instrument cluster is acting up, do not wait for it to fail completely. We offer quick diagnosis and same-day repair in most cases—preserving your original mileage, coding, and full functionality while avoiding larger system failures.
Book Your Mercedes Instrument Cluster Repair Service in Dubai
We repair over 120+ instrument clusters every month, covering models like the W203, W204, W221, W222, and more. Most repairs are completed within 6 to 24 hours, depending on the fault. We handle everything—from dead LCD screens and EEPROM faults to stepper motor failures and PRNDL display issues—using advanced tools like XENTRY, DAS and Vediamo. Our team preserves your original mileage, VIN, and coding, so there are no issues with RTA inspection or system mismatches after the repair.
We offer a free diagnostic scan, 12-month repair warranty, and pickup and delivery service anywhere in Dubai (terms apply). Whether your cluster has gone black, your needles are stuck, or your screen shows random warnings, we will fix it quickly and correctly. You do not need to replace the full unit in most cases—component-level repair is faster and up to 75% more cost-effective. Call, WhatsApp, or fill out our online form to schedule your Mercedes instrument cluster repair today.
FAQs About Mercedes Instrument Cluster Repair in Dubai
Yes, in many cases, a failing Mercedes instrument cluster can cause parasitic battery drain, especially if the cluster does not shut off properly after the ignition is off. We've observed this in W211 and W221 models, where faulty backlight circuits or communication loops keep the cluster partially active. During our cluster repair process, we test for hidden current draw and correct the issue to prevent battery failure.
