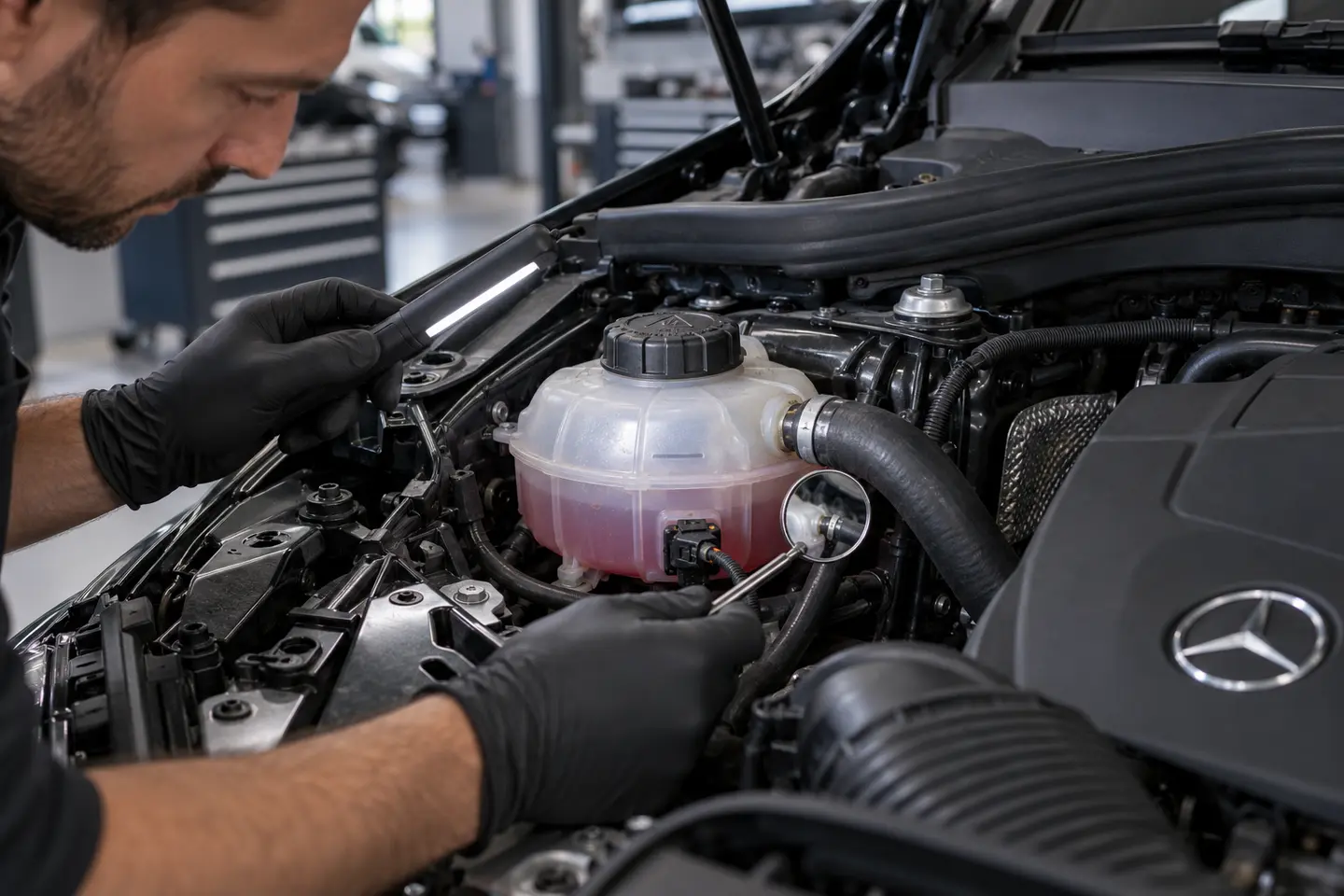

Reservoir and upper circuit
Expansion tank seam, cap seal, bleed line, upper hose, quick connector, and nearby plastic fittings. Heat cycling can reveal fine cracks only when pressure rises.
Find the source · Al Quoz 4
Mercedes Coolant Leak Repair in Dubai
A coolant warning tells you the level is wrong. It does not identify the leaking part. MercGarage starts with a cold-system inspection, traces residue and pressure loss, checks operating data where needed, and gives you a repair choice tied to the evidence.
Never remove the expansion-tank cap while the engine is hot. Escaping pressure can release boiling coolant.
Cold pressure testingResidue and UV tracingExternal and internal leak checksWritten repair scope
Useful diagnostic starting point
AED 250 to 450
for a cooling-system leak diagnosis using cold inspection and pressure testing where suitable. Minor external repairs often begin around AED 350, while a confirmed internal engine leak can cost several thousand dirhams.
The diagnosis range includes normal test time and 5% VAT. Dye, strip-down, recovery, replacement parts, coolant, and repairs are separate unless written into the estimate.
Cost by likely source
Mercedes coolant leak repair prices
The source, access, engine layout, part choice, coolant condition, and any overheating damage determine the final total. These ranges help you compare the common routes before booking.
| Confirmed repair route | Planning total | Scope represented |
|---|---|---|
| Cooling-system leak diagnosis | AED 250 to 450 | Cold inspection, pressure test where suitable, and initial findings |
| Hose, connector, clamp, or local joint repair | AED 350 to 950 | Common external part, labour, coolant correction, and leak check |
| Expansion tank and cap replacement | AED 500 to 950 | Tank, cap where required, normal labour, and coolant correction |
| Thermostat or housing repair | AED 650 to 1,500 | Part, seals, normal access labour, coolant, and verification |
| Water pump replacement | AED 1,200 to 4,200 | Pump, seals, engine-dependent labour, coolant, and checks |
| Radiator replacement | AED 1,150 to 3,200 | Radiator, normal fitting parts, labour, coolant, and testing |
| Confirmed internal engine leak repair | AED 4,500 to 8,500+ | Investigation and major repair scope varies with engine damage |
Planning estimates include the stated parts or work, normal labour and consumables, specified coolant where listed, and 5% VAT. Extra hoses, oil or transmission-fluid contamination, fan faults, turbo cooling lines, recovery, machining, engine damage, and unavailable or genuine-only components can change the total. No major repair begins without an agreed written scope.
Leak-source map
Four zones explain most coolant-loss decisions
Coolant travels along brackets, covers, airflow paths, and the undertray. The wettest visible spot is not always the source, so the system is read from high points and connections toward the collected fluid.
Engine and pump area
Water pump seal, thermostat or housing, oil-filter housing coolant passages on some engines, core plugs, and short hoses hidden by covers.
Front cooling pack
Radiator core, plastic end tanks, lower hose, drain point, fan contact, and damage from debris or an earlier front-end repair.
Cabin and internal path
Heater circuit leaks can produce a sweet smell, mist, or damp carpet. Internal engine loss needs evidence such as contamination, combustion-gas findings, or pressure behavior.
Evidence ladder
We increase the test only when the first check is not enough
This order limits unnecessary dismantling and keeps the repair tied to a finding.
1. Visual trace

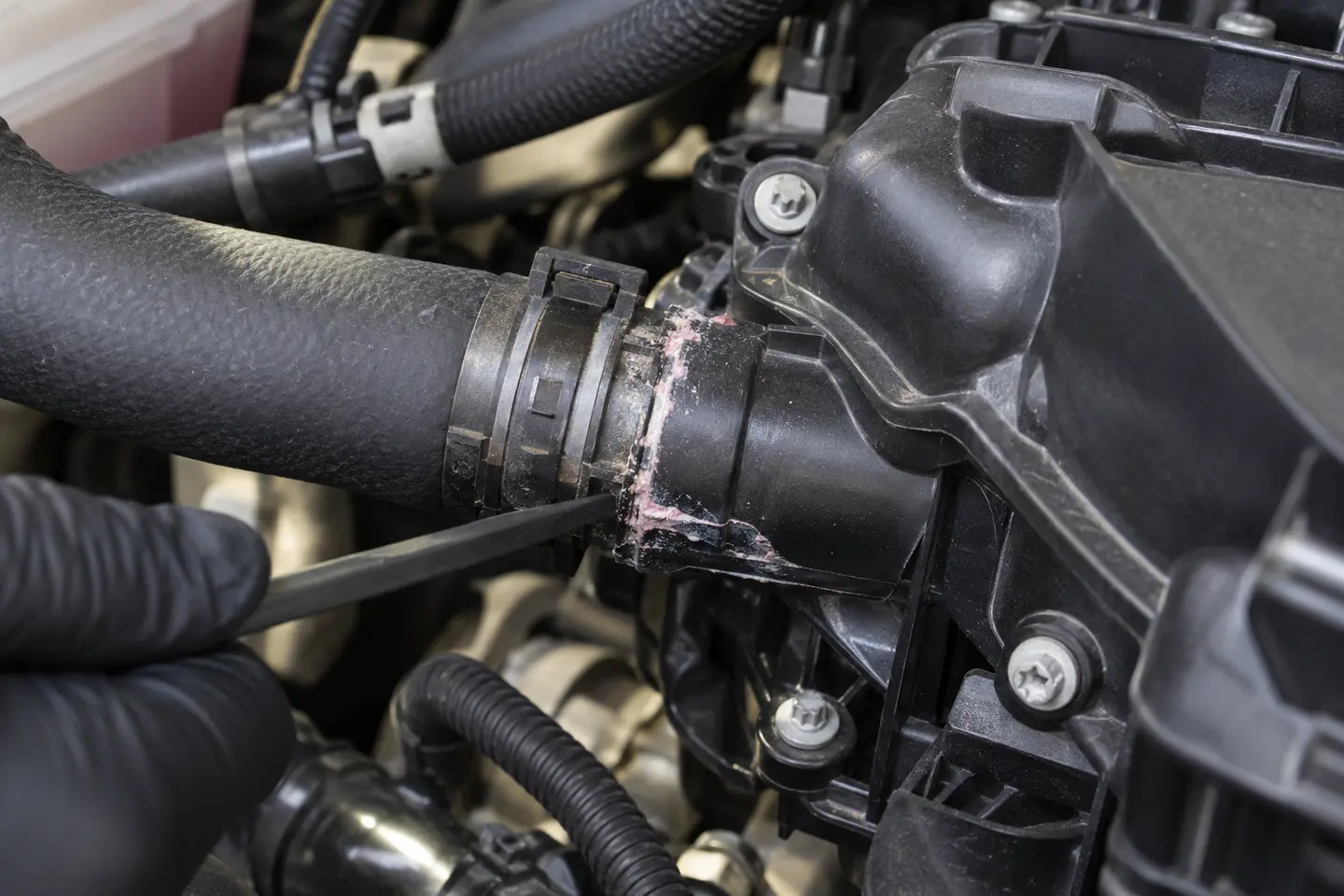

Inspect when cold for level, dried residue, staining, split plastic, hose swelling, disturbed clamps, wet undertrays, and a path from the highest evidence point.
2. Controlled pressure
Pressurize within the suitable test limit and watch the suspected areas. The aim is to reveal loss without running the engine hot again.
3. Trace or internal tests

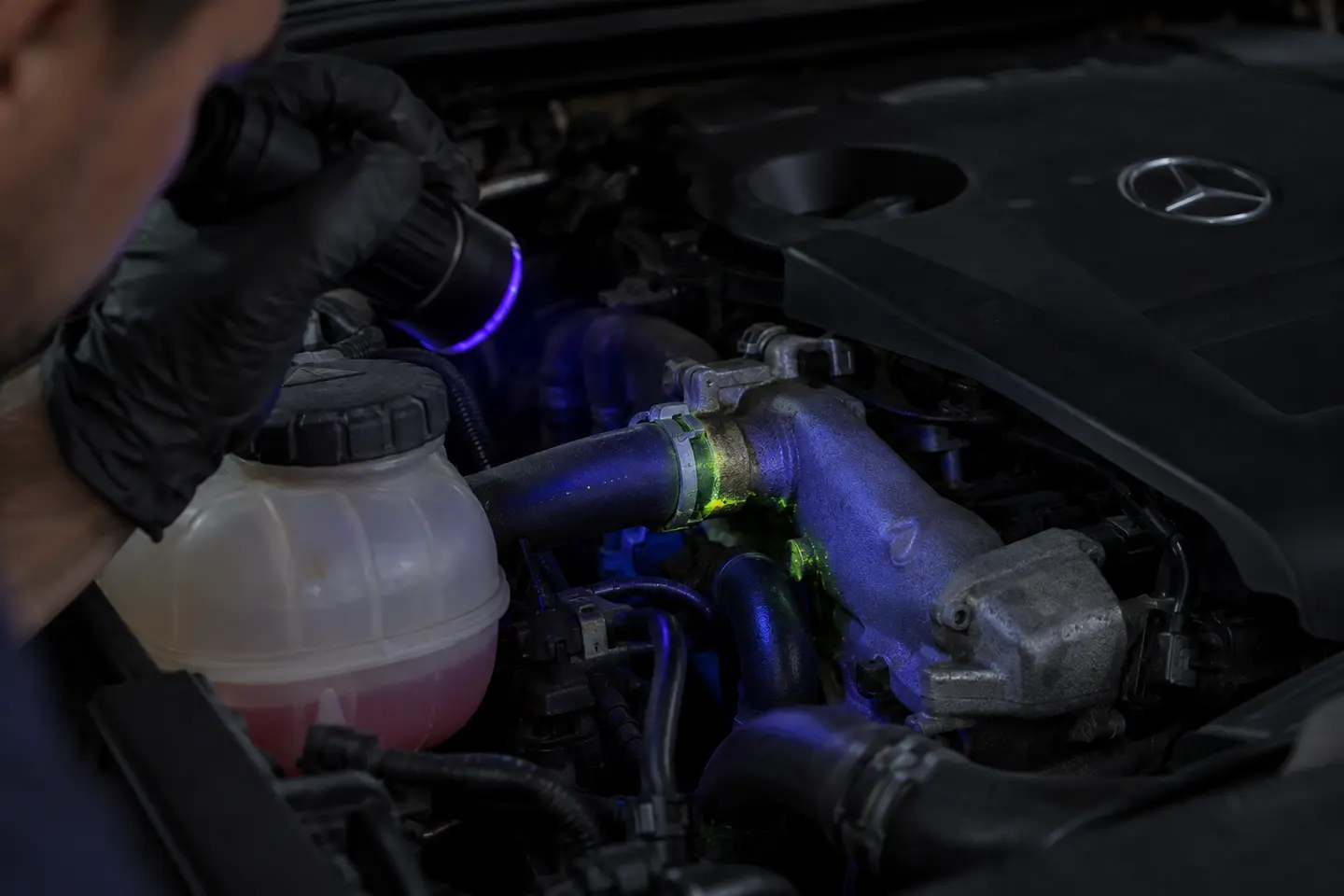

Use UV tracer where appropriate, monitor pressure behavior, inspect oil and exhaust clues, or run a combustion-gas or deeper test when external evidence is absent.
Decision, not guesswork
What happens after the source is found
Local repair is enough
A single hose, connector, cap, tank, seal, or accessible joint is leaking and surrounding components test normally. The estimate identifies the part, coolant handling, and verification. Preventive extras remain optional unless their condition creates an immediate risk.
A system component owns the fault
The water pump, thermostat assembly, radiator, heater circuit, fan system, or an internal engine path needs its own repair plan. That page and estimate should own the part-specific work rather than hiding it under a generic leak package.
For a confirmed circulation fault, see Mercedes water pump replacement. For a leaking core or end tank, compare the Mercedes radiator replacement scope and model-based pricing.
Repair completion
A dry workshop floor is not the final test

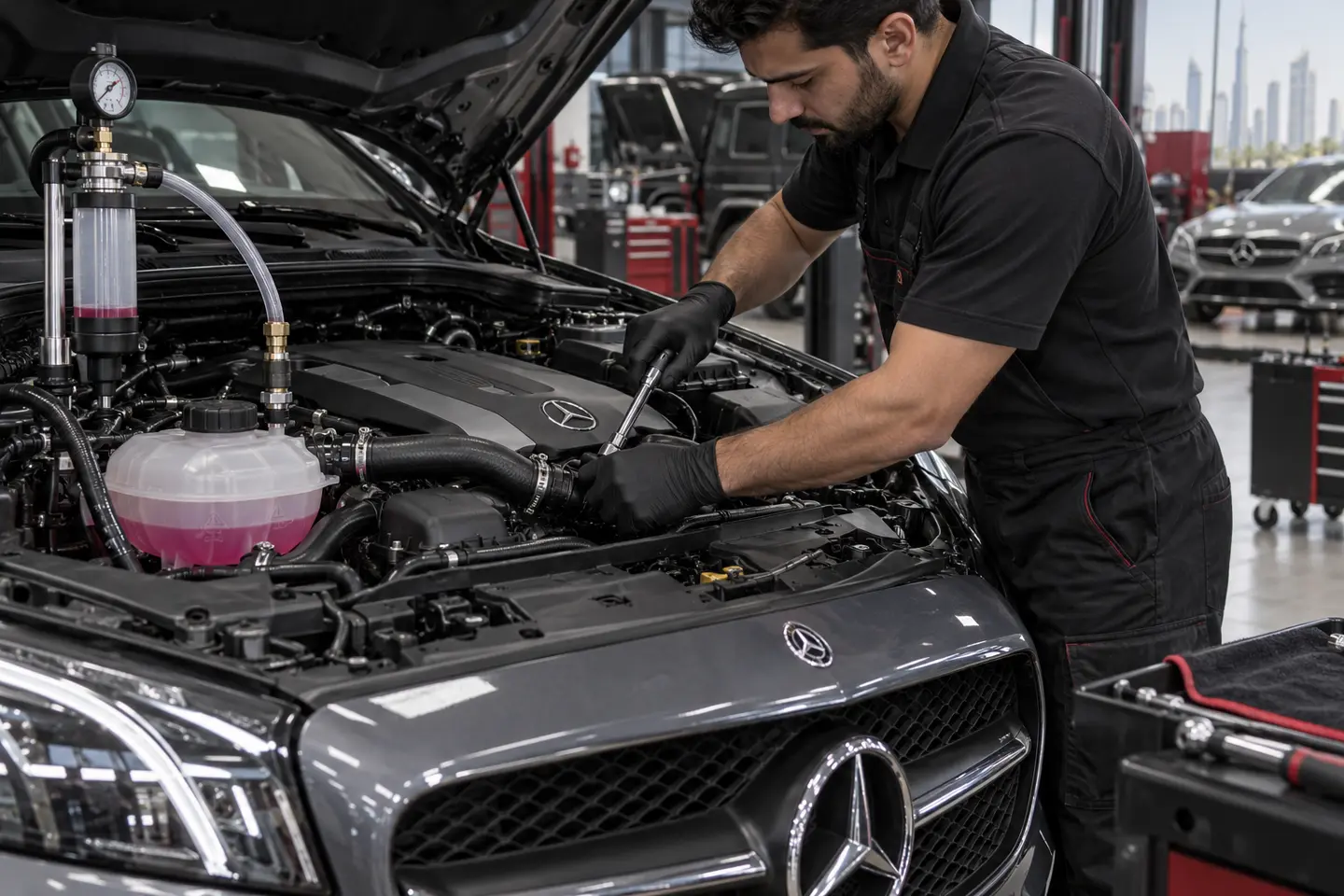

After repair, the system needs the correct coolant, a suitable refill and bleed method, and a controlled warm-up. We check the repaired area under operating conditions, monitor temperature, confirm heater output and fan response, and recheck the level after stabilization.
Source repaired
The identified leak path is dry under a suitable pressure or operating check.
Air managed
The circuit is filled and bled using a method appropriate to the vehicle.
Temperature stable
Readings, circulation, fan response, and heater behavior are consistent with the repaired system.
Owner briefed
You receive the approved scope, any remaining observations, and clear cold-level recheck guidance.
MercGarage is operated by AMF AUTO SERVICES LLC at 39 Al Quoz 4, Dubai. Mercedes-trained technicians and STAR diagnostics support the physical leak inspection when fault memory, pump control, fan commands, or sensor readings matter.
Common questions
Mercedes coolant leak repair FAQ
Can I top up coolant and keep driving?
Only treat a cold top-up as an emergency measure when the vehicle is not overheating and the loss is very small. It does not fix the leak. If the warning returns, level drops quickly, temperature rises, or steam appears, stop and arrange recovery.
Why can there be no puddle under the car?
A small leak can evaporate on hot parts, collect in the undertray, appear only under pressure, enter the cabin heater circuit, or pass internally into oil or combustion. Dried residue and pressure behavior can be more useful than a floor stain.
Does the diagnostic price include VAT?
Yes. The AED 250 to 450 planning range includes normal inspection and test time plus 5% VAT. Dye, extended strip-down, recovery, parts, coolant, and the repair itself are separate unless the written estimate includes them.
Can different coolant colours be mixed?
Colour alone does not confirm chemistry or Mercedes approval. Mixing incompatible coolant can reduce protection or create deposits. We identify the required specification and consider the fluid already in the car before topping up, correcting, or flushing.
How long does coolant leak diagnosis take?
An accessible external leak may show during the initial cold inspection and pressure test. Intermittent, internal, cabin, or hidden leaks can need cooling, cleaning, tracer dye, repeated pressure checks, or more detailed testing. We explain the next diagnostic step before adding time.
Can overheating damage the engine?
Yes. Continued driving with high temperature or low coolant can distort or damage engine parts, seals, and lubricated surfaces. Shut down early. After a serious event, the repair plan may need to check engine condition as well as the original leak.
What information should I send before booking?
Send the VIN, model year, exact warning, when it appears, any temperature change, how often you top up, coolant colour only as an observation, and photos of residue or the parking spot. Never open the cap just to take a photo while hot.
Protect the engine first
Call if the level or temperature is changing now
We will help decide whether to drive, wait for the engine to cool, or arrange pickup or recovery. WhatsApp is useful for VIN and evidence, but an active overheat deserves a call first.
